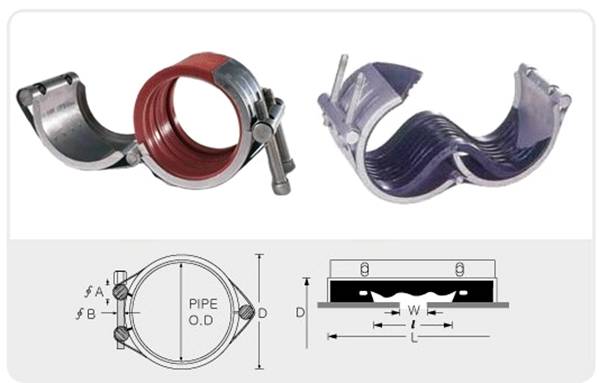

REPAIR CLAMP
HINGE STANDARD (RCH-S)
|
MODEL
|
D1(O.D)
|
D2
(RANGE) |
øB
|
øA
|
L
|
l
|
T
|
D
|
W.P
|
Kg
|
P N.m(kgf.cm)
|
|
20A
|
3/4”
|
26-28
|
M6 x 50Lx 2BOLTS
|
10
|
57
|
33
|
0.8
|
46
|
18
|
0.2
|
5-8(50-80)
|
|
25A
|
1”
|
33-35
|
"
|
10
|
57
|
33
|
0.8
|
51
|
“
|
0.2
|
"
|
|
32A
|
1-1/4”
|
42-44
|
M8 x 55L x 2 BOLTS
|
12
|
57
|
33
|
1.0
|
62
|
“
|
0.35
|
8-12(80-120)
|
|
40A
|
1-1/2”
|
47-49
|
"
|
12
|
57
|
33
|
1.0
|
66
|
“
|
0.35
|
"
|
|
50A
|
2”
|
58-61
|
M10 x 70L x 2 BOLTS
|
16
|
57
|
46
|
1.2
|
81
|
16
|
0.8
|
10-15(100-150)
|
|
65A
|
2-1/2”
|
75-78
|
"
|
16
|
80
|
46
|
1.2
|
100
|
"
|
0.86
|
"
|
|
80A
|
3”
|
88-92
|
M12 x 85L x 2BOLTS
|
18
|
80
|
65
|
1.5
|
115
|
14
|
1.6
|
15-20(150-200)
|
|
100A
|
4”
|
113-117
|
"
|
18
|
107
|
65
|
1.5
|
144
|
"
|
1.8
|
"
|
|
125A
|
5”
|
138-142
|
M14 x 115L x 2 BOLTS
|
22
|
107
|
71
|
2.0
|
175
|
12
|
3.0
|
25-30(250-300)
|
|
150A
|
6”
|
163-167
|
"
|
22
|
116
|
71
|
2.0
|
196
|
"
|
3.2
|
"
|
|
200A
|
8”
|
214-219
|
M16 x 150L x 2 BOLTS
|
30
|
116
|
80
|
2.5
|
260
|
10
|
7.0
|
40-80(400-800)
|
|
250A
|
10”
|
265-270
|
"
|
30
|
155
|
80
|
2.5
|
300
|
"
|
7.9
|
"
|
|
300A
|
12”
|
316-321
|
M18 x 150L x 2 BOLTS
|
32
|
155
|
80
|
3.0
|
350
|
8
|
9.0
|
80-120(800-1200)
|
|
管夾組件
|
材 質
|
內襯材質
|
耐溫性
|
適 用 流 體
|
|
外 殼
|
SUS 304,316L
|
EPDM
|
-30~120℃
|
水、空氣、粉末、蒸汽、藥品
|
|
滑卡導片
|
SUS 304,316
|
NBR
|
-30~100℃
|
瓦斯、油類、碳氫化合物
|
|
螺帽&固定槓
|
SUS 304,316
|
SILICONE
|
-75~200℃
|
高溫流體
|
|
螺
|
SUS 304-HC-1/8
|
VITON
|
-95~300℃
|
高溫流體、高腐蝕性化學品
|
|
GORE-TEX
|
-232~350℃
|
